It’s not a secret, I love optimizing things. In a sense, I am both an Optimizer (literally) and an optimizer. And today we will be back to basic – optimizing a tricky SQL query.
The query in question is this particular stored procedure
ecf_CatalogNode_GetAllChildNodes, this is used to get all children nodes of specific nodes. It is used in between to find all entries that are direct, or indirect children of specific nodes. Why, you might ask, because when you change the url segment of the node, you want to make sure that all entries that are under that node, will have their indexed object refreshed.
Let’s take a look at this stored procedure, this is how it looks like
CREATE PROCEDURE [dbo].[ecf_CatalogNode_GetAllChildNodes] @catalogNodeIds udttCatalogNodeList readonly AS BEGIN WITH all_node_relations AS ( SELECT ParentNodeId, CatalogNodeId AS ChildNodeId FROM CatalogNode WHERE ParentNodeId > 0 UNION SELECT ParentNodeId, ChildNodeId FROM CatalogNodeRelation ), hierarchy AS ( SELECT n.CatalogNodeId, '|' + CAST(n.CatalogNodeId AS nvarchar(4000)) + '|' AS CyclePrevention FROM @catalogNodeIds n UNION ALL SELECT children.ChildNodeId AS CatalogNodeId, parent.CyclePrevention + CAST(children.ChildNodeId AS nvarchar(4000)) + '|' AS CyclePrevention FROM hierarchy parent JOIN all_node_relations children ON parent.CatalogNodeId = children.ParentNodeId WHERE CHARINDEX('|' + CAST(children.ChildNodeId AS nvarchar(4000)) + '|', parent.CyclePrevention) = 0 ) SELECT CatalogNodeId FROM hierarchy END
I previously wrote about the relations between entities in Commerce catalog, here Commerce relation(ship), a story – Quan Mai’s blog (vimvq1987.com) , so relations between nodes can be a bit complicated – a node can have one true parent defined in
CatalogNode table, and then other “linked” nodes in
CatalogNodeRelation . So to find all children – and grand children of a node, you need to get from both.
Getting children of a node from
CatalogNodeRelation is simple, but things become more complicated when you have to get grandchildren, then great-grandchildren, and so on, and so forth. with that, CTE needs to be used in a recursive way. But then there is a problem arises – there is a chance, small, but still, that the data was added in a correct way, so circular reference is possible. i.e. A is a parent of B, which is a parent of C, and itself is a parent of A. To stop the SP from running forever, a check needs to be added to make sure any circular reference is cut short.
This brings back memory as the first ever support case I worked on at Optimizely (then Episerver) was with a circular reference. The site would crash whenever someone visited the catalog management in Commerce Manager. That was around June, 2012 (feeling old now?). My “boss” at that time involuntarily volunteered me for the case. See what you made me do, boss.
Now you can grasp the basic of what the SP does – let’s get back to the original problem. it’s slow to run especially with big catalog and complex node structure. As always, to optimize everything you need to find the bottleneck – time to fire up SQL Server Management Studio and turn on the Actual Execution Plan
I decided to go with 66, the “root” catalog node. this query yield around 18k rows
declare @Nodes udttCatalogNodeList insert into @Nodes (CatalogNodeId) select 66 exec ecf_CatalogNode_GetAllChildNodes @Nodes
and also 18s of execution.
Mind you, this is on my machine with pretty powerful CPU (AMD Ryzen 7 5800x, 8 cores 16 threads), and a very fast nvme PCIe SSD (Western Digital Black SN850 2TB). If this was executed on Azure Sql database for example, a timeout is almost certainly guaranteed. So time of execution should only be compared relatively with each other.

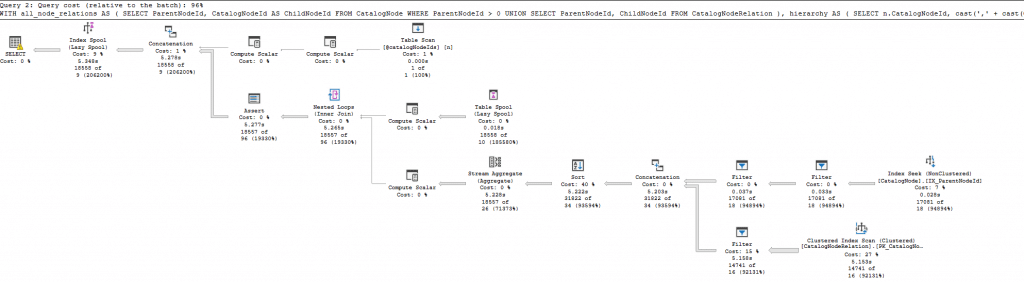

If we look at the execution plan, it is quite obvious where the bottleneck is. A scan on
CatalogNode table is heavy (it read 79M rows on that operation). As suggest by Anders from Timeout when deleting CatalogNodes from a large catalog (optimizely.com), adding a non clustered index on
ParentNodeId column would improve it quite a lot. And indeed it does. The execution time is reduced to 5 second.

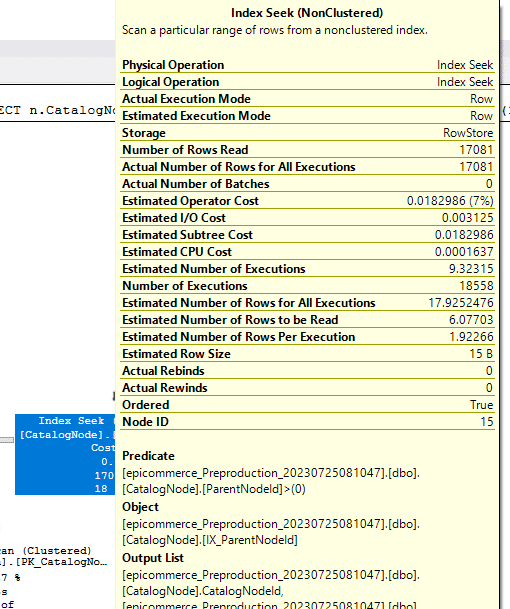

And the number of rows read on
CatalogNode reduced to just 17k
This is of course a very nice improvement. But the customer reported that it is not enough and the SP is still giving timeout, i.e. further optimization is needed.
Naturally, the next step would be to see if we can skip the circular check. It was added as a safe measure to avoid bad data. It should not be there, as the check should be performed at data modification. But it is there for historical reasons and we can’t just change it, not trivially. So let’s try it for our curiousity.
The modified query looks like this (basically just commented out any code related to the CyclePrevention
ALTER PROCEDURE [dbo].[ecf_CatalogNode_GetAllChildNodes] @catalogNodeIds udttCatalogNodeList readonly AS BEGIN WITH all_node_relations AS ( SELECT ParentNodeId, CatalogNodeId AS ChildNodeId FROM CatalogNode WHERE ParentNodeId > 0 UNION SELECT ParentNodeId, ChildNodeId FROM CatalogNodeRelation ), hierarchy AS ( SELECT n.CatalogNodeId --, '|' + CAST(n.CatalogNodeId AS nvarchar(4000)) + '|' AS CyclePrevention FROM @catalogNodeIds n UNION ALL SELECT children.ChildNodeId AS CatalogNodeId --, parent.CyclePrevention + CAST(children.ChildNodeId AS nvarchar(4000)) + '|' AS CyclePrevention FROM hierarchy parent JOIN all_node_relations children ON parent.CatalogNodeId = children.ParentNodeId --WHERE CHARINDEX('|' + CAST(children.ChildNodeId AS nvarchar(4000)) + '|', parent.CyclePrevention) = 0 ) SELECT CatalogNodeId FROM hierarchy END

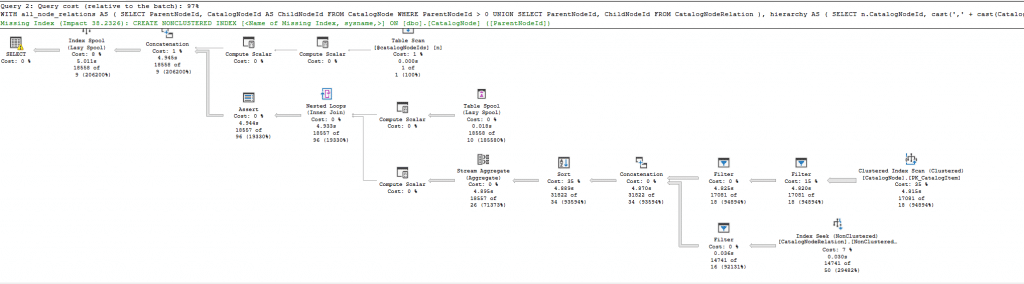

And the improvement is quite impressive (more than I expected), the query completes almost instantly (less than 1s). The read on CatalogNodeRelation significantly reduced

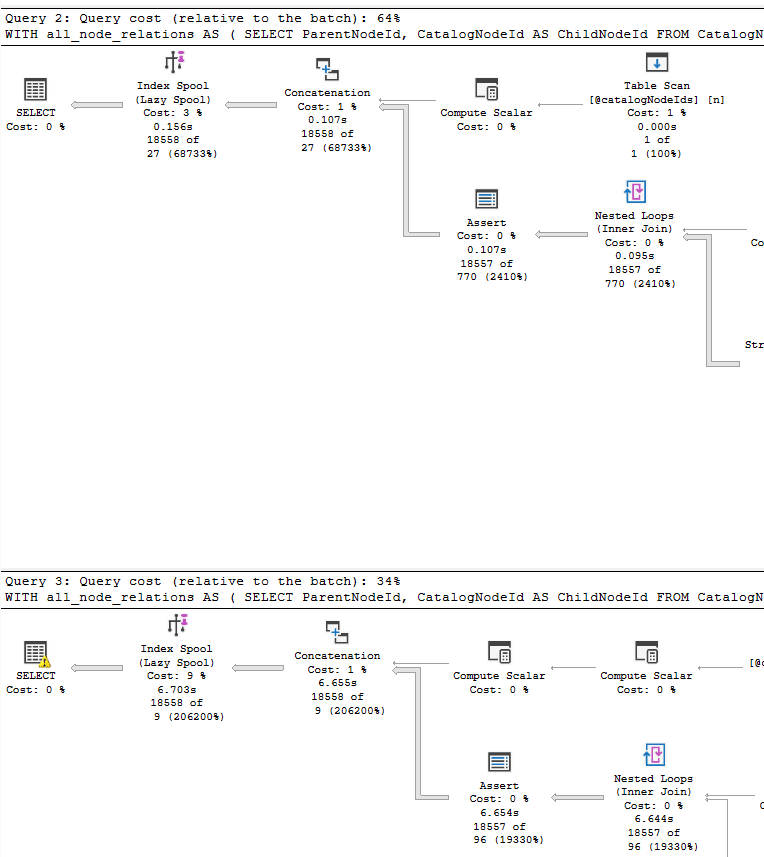

A word of warning here, execution plan can’t be simply compared as-is. If I run two versions side by side, it gives quite misleading comparison
Even though the top one (without the circular reference check) is much faster than the original (the bottom one), SQL Server estimates that the first is slower (almost 2x slower than the second). So execution plan should be used to see what has been done and what is likely the bottleneck inside a query, it should not be used as comparison between queries. In most cases, comparing statistics using
set statistics io on is the best way to compare.
If not for the fact that we are changing the behavior of the stored procedure, I would be happy with this approach. The chance of running into circular reference is small, but it is not zero. As we said, we can in theory gating the relation during insert/updating, but that would be too big a change to start with. This is one of constraint as we work at framework level – we have to step carefully to not break anything. A breaking change is bad, but a data corruption is simply unacceptable. I spent a few hours (probably more than I should) trying to optimize the circular reference check, but no better solution is found.
The next approach would be – as we can guess, to make sure that we get rid of the

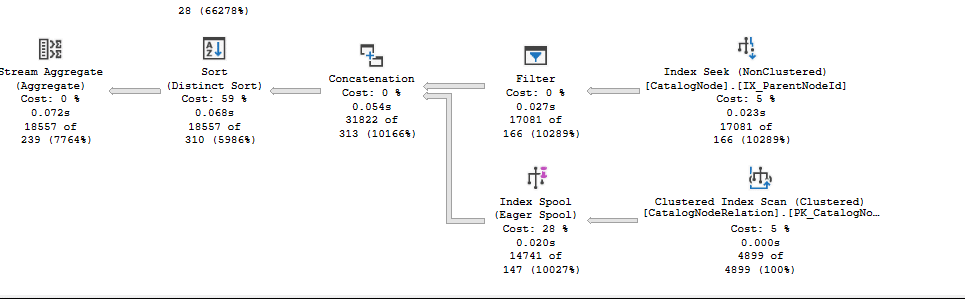

Clustered Index Scan happened on the
CatalogNodeRelation table. The solution would be quite simple, a non clustered index on the `ParentNodeId should be enough.

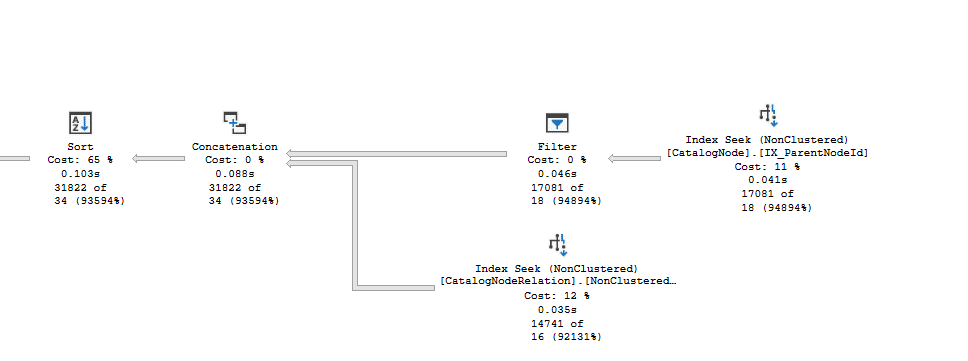

Great success. The performance is comparable with the “non circular reference check” approach.
As adding an index is a non breaking change (and albeit in some cases it can cause performance regression, like in A curious case of SQL execution plan – Quan Mai’s blog (vimvq1987.com) , but it is rare, also, in this case the cardinality of the
ParentNodeId is most likely quite well distributed).
